Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: ToupCam Camera
  • Model Number: XCAM1080PHA C-mount HDMI+USB CMOS Camera
  • Sensor Type: Sony CMOS
  • Resolution: 1080p HD / 1920*1080
  • Data Interface: HDMI+USB2.0
  • OS Supported: Windows/Linux/MAC OS
  • Application Software: ToupView/ToupLite/XCamView
  • Main functions: Video Preview, Capture, Measuremet & Processing

Packaging & Delivery

Packaging Details Gift box : L:25.5cm W:17.0cm H:19.0cm (1pcs, 1.55kg/ box)
Delivery Time 3-15 Business Days after the Payment.

XCAM1080PHA C-mount HDMI+USB CMOS Camera

       XCAM1080PHA camera is a multiple interfaces (HDMI+USB2.0+SD card, so X here means multiple interfaces) CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.

      For HDMI output, a camera control panel and toolbar are overlayed on the HDMI screen, in this case, the USB mouse can be used to set the camera,browse and compare the captured image, play the video etal.

      For USB2.0 output, unplug the mouse and plug in the USB2.0 cable, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as ToupTek's other camera series.

      XCAM1080PHA camera can be used for microscope, industrial stereo microscope, on-line inspection et al.

Order CodeSensorSensor Size(mm)Pixel(um)FPS/ResolutionBinningExposure

XCAM1080PHA
XP1080A

Sony IMX236(C)

1/2.8"(5.5x3.4)

2.8x2.8

60@1920x1080
30@1920x1080

1x1

0.4ms~999ms



Interface & Button Functions

USB

USB Camera or USB Mouse

HDMI

HDMI Output

DC12V

12V Power in

SD

SD Card Slot

ON/OFF

Power On/Off Switch

LEDPower On Indicator
Other Specification for HDMI Output
UI OperationWith USB Mouse
Image CaptureHigh Speed in SD Card
Video Record1080P 30fps in SD Card
Camera Control PanelIncluding Exposure, Gain, White Balance, Color
Adjustment, Sharpness and Denoising Control
ToolbarIncluding Zoom, Mirror, Comparison, Freeze,
Cross, Browser Function
Other Specification for USB Output
White BalanceAuto White Balance

Color Technique

Ultra-FineTM Color Engine (USB)

Capture/Control API

Standard UVC for Windows/Linux/Mac(USB)

Recording System

Still Picture or Movie (USB)

Software Environment (for USB2.0 Connection)

Operating System

Microsoft® Windows® XP /Vista /7/8/8.1(32 & 64 bit)
OSx(Mac OS X)
Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:4GB or More

USB Port:USB2.0 High-speed Port

Display: 19” or Larger

CD-ROM

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 12V/2A Adaptor

Overall Dimensions

Width x Depth x Height

78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”)

Shipping Weight

0.47 kg (1.0lbs)

XCAM1080PHA and Microscope

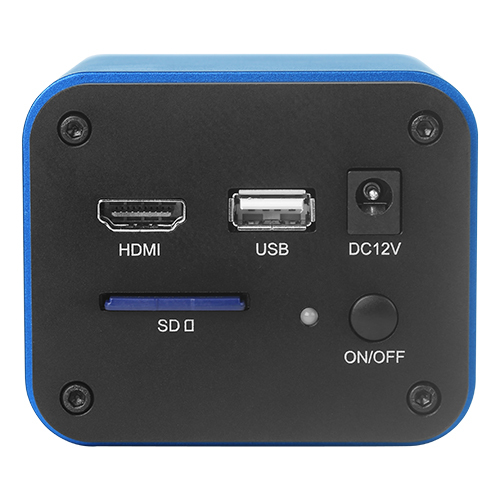

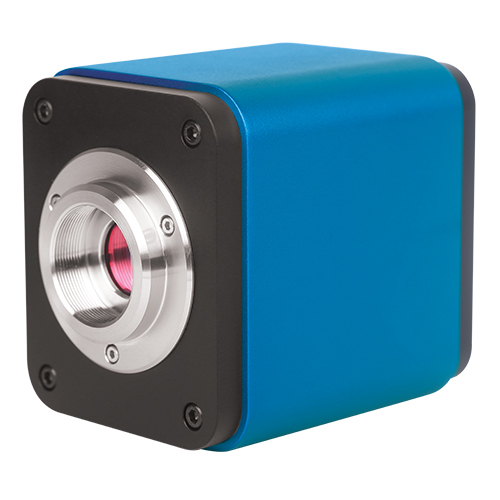

Front View of the XCAM1080PHA CameraBack View of the  XCAM1080PHA Camera

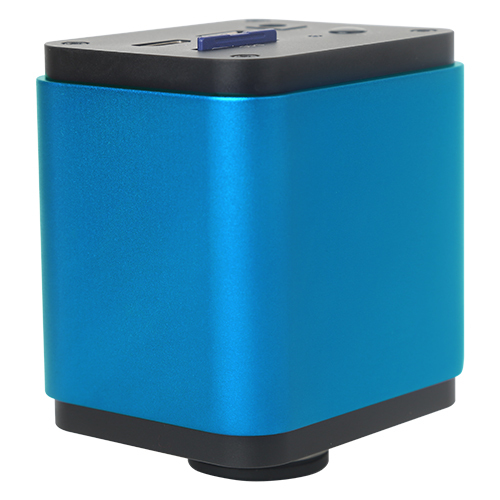

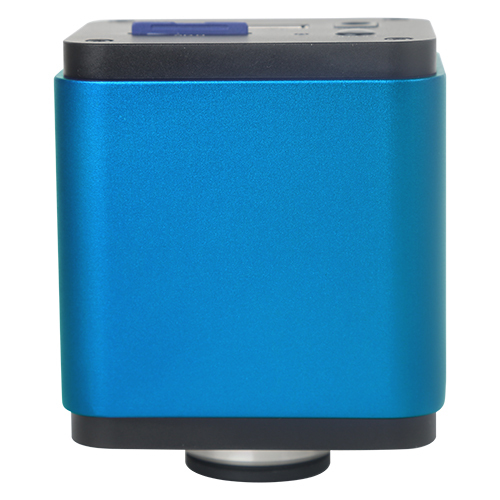

Normal ViewSide View

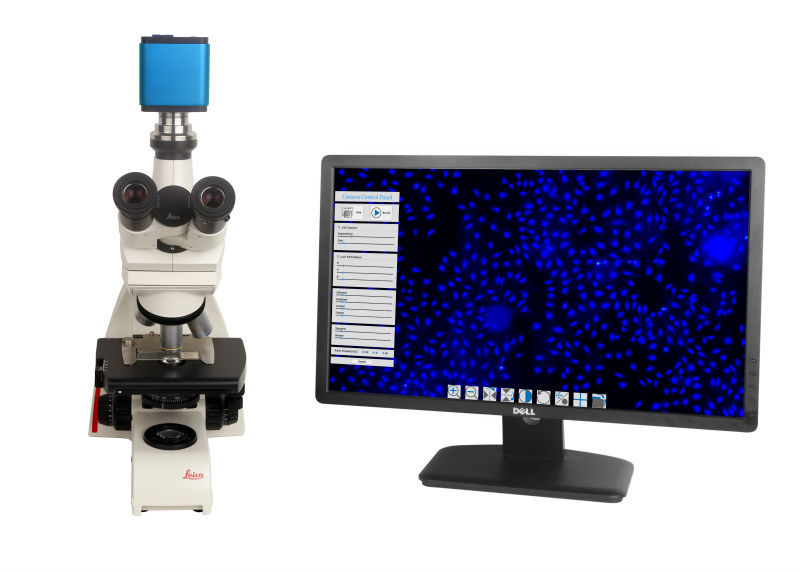

XCAM1080PHA Camera and Microscope

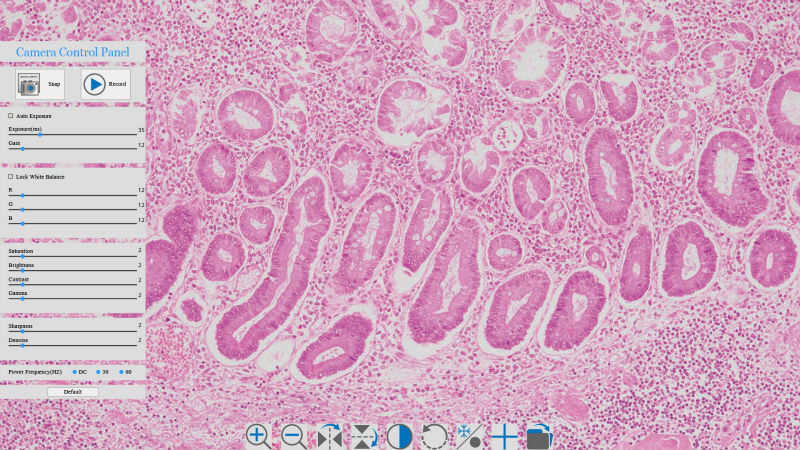

UI of the XCAM1080PHA Camera

Potiential Application

     Scientific research, education (teaching, demonstration and academic exchanges);
     Digital laboratory, medical research;
     Industrial visual (PCB examination, IC quality control);
     Medical treatment (pathological observation);
     Food (microbial colony observation and counting);
     Aerospace, military (high sophisticated weapons);

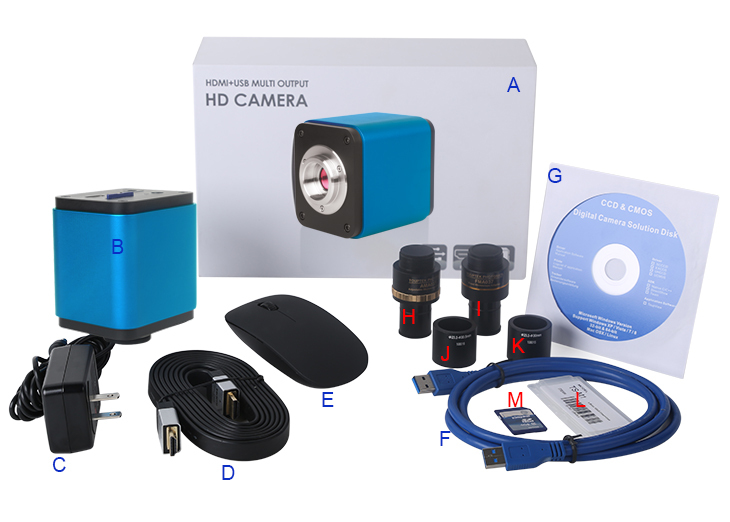

Packing Information for XCAM1080PHA

Packing Information for XCAM1080PHA camera



Standard Packing List

A

Gift box : L:25.5cm W:17.0cm H:19.0cm (1pcs, 1.55kg/ box)

B

HDMI+USB+SD Card all in 1 camera

C

Power Adaptor: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A

American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC

EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard

European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS

EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard

DHDMI Cable
EUSB Mouse

F

High-speed USB2.0 A male to A male gold-plated connectors cable /2.0m

G

CD (Driver & utilities software, Ø12cm)

Optional Accessory

H

Adjustable
lens
adapter

C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

I

Fixed
lens adaptor

C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

J

108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube

K

108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube

L

Calibration Kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
MSD Card(4G or 8G)

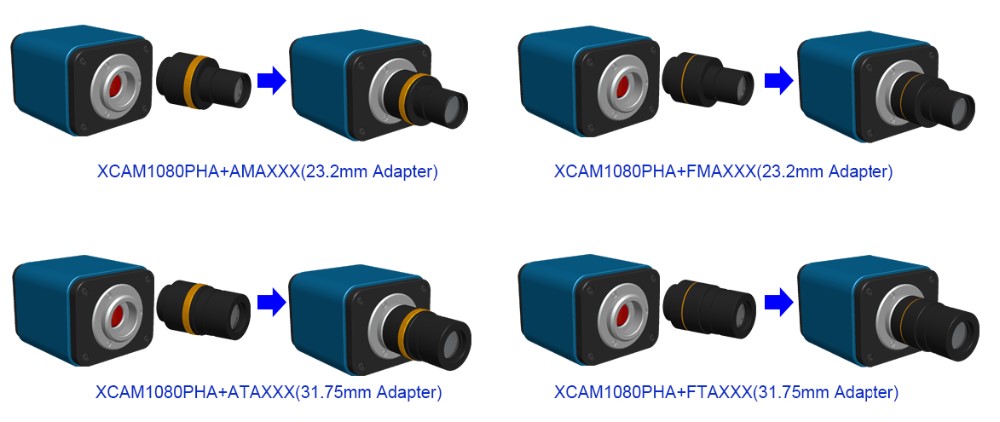

Extension of XCAM1080PHA  with Microscope or Telescope Adaptor

ApplicationPicture

C-mount Camera

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera



Telescope Camera:
